Crystal Resonator
Crystal Resonators: A crystal resonator is a passive electronic component that leverages the piezoelectric effect of quartz crystals to generate high - precision oscillation frequencies. It is characterized by stable output frequencies and strong anti - interference capabilities, and is widely used in modern electronic communication devices and systems. In terms of quality grades, our company can provide devices of various quality levels, such as industrial - grade, military - grade, and aerospace - grade. Regarding selection and application, our company can offer devices suitable for multiple applications, including low - aging, miniaturization, and low - g sensitivity.

Download Center

File Download

Product Description

Packaging series

Frequency range

Crystal cut

C0

C1

Q value

Inflection point

HC-43U

8.192~200M

SC cut

2~6pF

0.1~30fF

100~1500K

60℃~120℃

HC-45U

19.2~200M

SC cut

2~6pF

0.1~30fF

100~700K

60℃~120℃

TO-8

5~200M

SC cut

2~6pF

0.1~30fF

100~3000K

60℃~120℃

TO-5

10~200M

SC cut

2~6pF

0.1~30fF

100~1300K

60℃~120℃

UM-1

10~200M

AT cut

1~6pF

0.1~30fF

30~500K

-

UM-5

10~200M

AT cut

1~6pF

0.1~30fF

30~500K

-

HC-49U

10~200M

AT cut

1~6pF

0.1~30fF

30~300K

-

Related Products

SC-cut Crystal Resonators

SC-cut Crystal Resonators

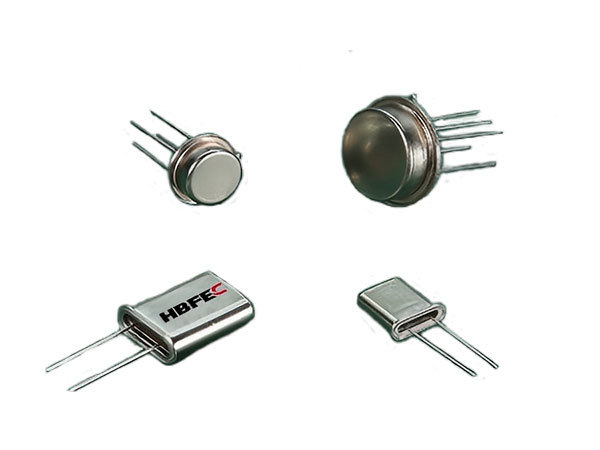

SC-cut crystals, as stress-compensated cut crystals, can compensate for the aging and mechanical stress in crystal components. They are commonly used in high-stability clock application fields. The SC-cut crystals developed by our company have a frequency coverage ranging from 5 MHz to 200 MHz. They support SMD and DIP packaging forms, and the oscillation modes include fundamental wave, third overtone, and fifth overtone. They can be applied in fields such as wireless communication, frequency source equipment, satellite communication, and navigation.

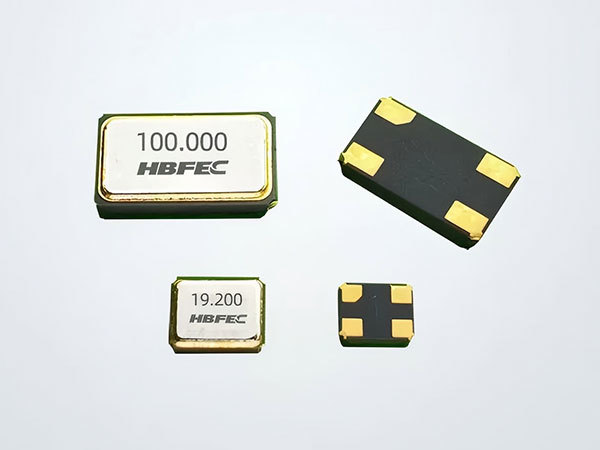

Surface - Mount Crystal Resonators

Surface - Mount Crystal Resonators

They support package forms such as SMD2520 and SMD3225. The frequency range is from 5 MHz to 100 MHz, which can provide operating frequencies for digital devices like MCUs and FPGAs.
